S4100

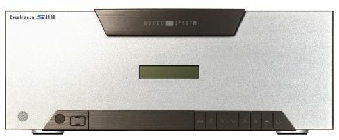

The Casablanca S-4100 is the successor of the Casablanca

S-4000 (Pro). Impressive performance data makes the new

Casablanca flagship the ideal tool for demanding editors.

The highlights include:

• Even more speed thanks to the new main board and powerful Core 2 Duo processor

• Big RAM reserve and huge hard-drive capacity

• Future-orientated video hardware incl. DVI/HDMi output (HDMi via adapter) and highly integrated NEXPERIA multimedia chipset

• Compatible with analogue, DV, HDV and AVCHD video footage

• Direct display of HD footage during the editing process (cutting, trimming, splitting, …)

• Flexible output of the finished video to SD or HD standards in various resolutions

• 18-speed double layer DVD burner or optional Blu-ray burner

• Single-monitor or dual-monitor operation possible - TV output to either DVI/HDMI or SCART

• Front connections (DV, S-video, CVBS, stereo audio, USB)

• A wide range of connections found on the back (DVI-I, Scart, DV, S-video, CVBS, stereo audio,

microphone, network, USB - partially multiple connections or separate for in and outputs)

• Software included: Bogart SE 2 system software including Media Manager, DVD Arabesk 4,

Power Key option, 3D Shapes Professional

Technical data

Casablanca S-4100

Processor Intel® Core™ 2 Duo E8500, 2 x 3,16 GHz

RAM 2 GB

Hard-drive 1000 GB

Optical drive

18-speed Double Layer DVD burner (optional: Blu-ray burner)

Graphics Single or dual-monitor operation possible. TV connection

either via DVI/HDMI or SCART

Video and Audio Supported video formats

VHS, S-VHS, D8, DV, HDV, AVCHD

Video modes PAL, 720p, 1080i, various VGA modes

Audio 6 tracks, 48 kHz

Connections

Front: DV, S-video, CVBS, stereo audio, USB,

Back: DVI-I, SCART, DV, S-video, CVBS, stereo audio, microphone, network, USB*

Software Bogart SE 2, DVD-Arabesk 4, 3D-Shapes Professional, Power Key option, Pro Pack

Measurements W x H x D: 440 x 176 x 365 mm

Weight app. 10 kg

*Partially multiple connections available

G E N E R A T I O N I I I

W H I S P E R

E D I T 2

Inside

Bogart SE

Includes

• DVD-Arabesk 4

• 3D Shapes Pro

• Power Key

Import TruType fonts

Classic Storyboard presentation or new Timeline mode? It‘s your choice

New trim and split window

Import AVCHD footage

Casablanca S4100

Prices subject to change owing to exchange rate fluctuation.

Inc VAT 17.5%

Media Manager
